The HDMI Extender over cat5e/cat6 is a tool for extending your HDMI signal over long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Internet cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 70 meters outside, also you can control the Sink in the Source side which is 70 meters outside using the HDMI Extender.
  • T-5335
  • Zenhon
Availability:
Quantity:
Inquire Add to Basket

1) Packaging accessories

HDMI Extender Transmitter -------------------------------------- 1PCS

HDMI Extender Receiver ----------------------------------------- 1PCS

IR Transmitter ------------------------------------------------------- 1PCS

IR Receiver ---------------------------------------------------------- 1PCS

DC Power Supply adapter --------------------------------------- 1PCS

Operation Manual -------------------------------------------------- 1PCS



2)Features

1.One pair as a full functional module, no need for setting.

2.Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.UTP cable termination follows the standard of IEEE-568B.

3.Transmission distance:

70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;

40meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit

4K x 2K@30Hz@24bit.

4. HDMI V1.4 supported.

5. HDCP compliant.

6. Full HD support: 1080p@60Hz@48 bit/pixels,1080p@120Hz@24bit/pixels,

7. 3D 1080P60Hz and 4K x 2K@30Hz@24bit

8. Transfer Infrared control signal together with the HDMI signal.

9. Support 20~60KHz IR working.


 1.0 Specifications

Frequency Bandwidth-----------------------------------------------------------------------2.97Gbps

HDMI Transmitter Input/Output Ports----------------------1x HDMI Female port/1 x CAT6

                                                                                                           1x IR Transmitter

HDMI Receiver Input/Output Ports------------------------1 x HDMI Female port/1 x CAT6

                                                                                                               1x IR Receiver

Power Supply--------------------------------------------------------------------------------DC 5V 2A

ESD Protection Human Body Model ------------------------------ ± 8kV (air-gap discharge)

                                                                                               ±4kV (contact discharge)

Dimensions (mm)--------------------------------------------------------65(W) X 100 (D) X 25 (H)

Weight-------------------------------------------------------------------------------------------200g x 2

Operating Temperature----------------------------------------------0°C ~ 40°C / 32°F ~ 104°F

Operating Temperature----------------------------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature ---------------------------------------------- -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity------------------------------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)------------------------------------------------------------------------20W



2.0 Operation controls and Functions

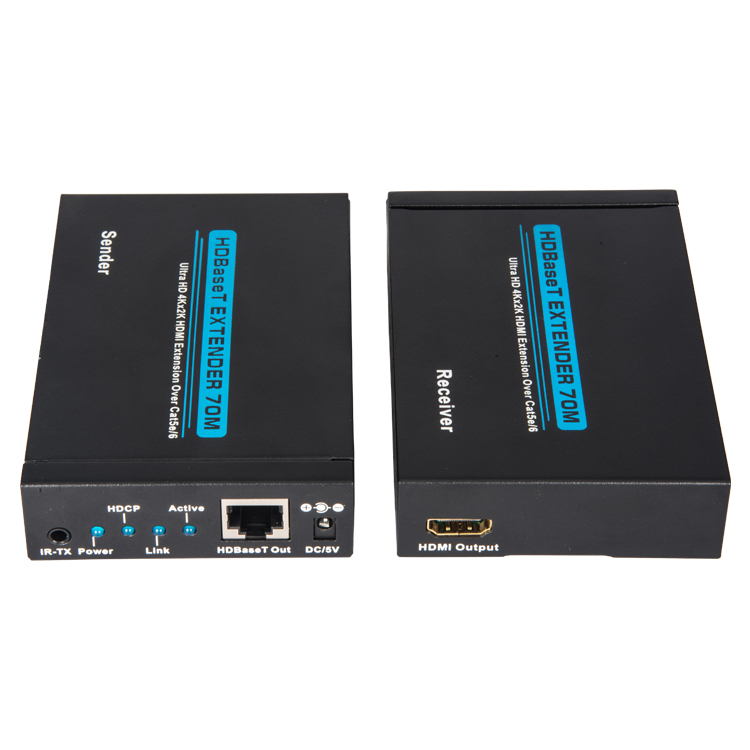

HDMI Extender Transmitter



IR-TX:IR Transmitter

Power:Power working status LED

Link:Signal connection status

Active:Working status LED

HDBaseT Out:Standard HDBaseT signal output port

DC/5V: DC Power Input port


HDMI Extender Receiver

IR-RX:IR Receiver

Power:Power working status LED

Link:Signal connection status

Active:Working status LED

HDBaseT Out:Standard HDBaseT signal input port

DC/5V: DC Power Input port



3.0 Application Example
